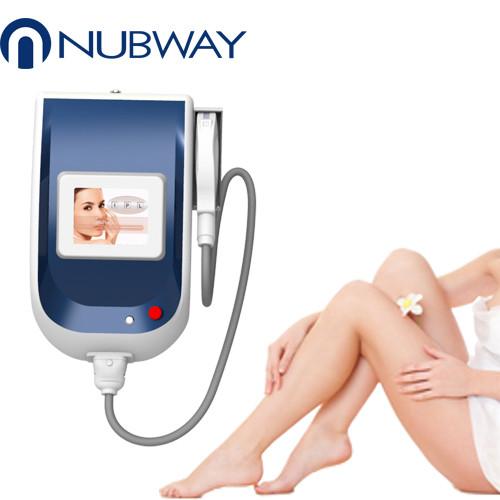

10HZ high power portable 808nm diode laser hair removal device for
beauty salon use
Strong tri cooling system ,continues using 12 hours more
Combine copper radiater with 4 big powerful fan
CE, ISO13485, ISO9001
Laser hair removal
Technical parameter:
| Laser type | Semiconductor laser |
| wavelength | 808 nm |
| Output Mode | pulse output |
| Control Method | Touch control |
| Screen Size | 8.4 Inch |
| Energy density | 10~70J/cm2 (Deviation≤±2%) |
| Pulse width range | 1-400ms |
| Spot size | 12*20mm |
| Frequency | 1-10HZ |
| Light spot surface temperature | 0-30°C |
| Cooling System | Semiconductor+built-in water+Air Cooling triple cooling systems |
| Dimension | 600*360*300mm |
| Net weight | 20kg |
| Fuse specification | Ø5×2510A |
| Input Power | 1800W |
| Input Voltage | AC220V±10% 10A 50HZ , 110v±10% 10A 60HZ |
Top laser handlepiece:
- 10 germany "dilas" laser bar inside . Total output 600w , 60w for
each laser bar
- Spot size=12mm*20mm=2.4cm² , total energy output 24J~168J ,
average energy density 10~70J/cm²
- Shot time warranty (max energy,max frenquency): 20 millions
- Medical soft handle pipe .
Cooling
Strong Cooling continues working more than 24 hours
* Semiconductor- peltier elements 40*40mm double deck cooler
* Water-Medical use high pressure vane pump
* Wind-4 DC power fan with copper condensor
Operate system:
* 10.4 Inch touch screen
* Humanized interface . Loading , choose men or women , choose the skin type , choose
the treatment area then start working . All suggest parameter
settled well . Set your own parameter when skilled .
* Automatic detection : Water flow voclocity , flow capacity ,working temperature .
Error display when meet unnormal situation .
Treatment principle:
808nm diode laser use 808-nm diode laser technology, the gold
standard in laser hair removal, energy penetrates deep into the
dermis where the hair follicle is located, delivering high average
power.Diode laser with sapphire contact cooling provides safe and
effective reduction of pigmented hair for all skin types .
Fit for nearly full body areas hair removal:810nm diode laser hair removal system for permanent & painless
epilation can
be used for back, armpit, chest,arm & legs, bikini hair removal and
even little areas epilation definitive, like feet or toe hair
removal, ear hair removal and etc.
Details:
Features
1.Safety: 808nm diode laser with stable function, and long using
life, intelligent microprocessor system control timely,
2.Quick: Big spot size of 12x12mm2, high effect and quick treatment
on big treatment area;
3.Efficiency: 808 nm is in the spectrum of near-infrared(0.75-1.50μm)
region, effective to absorb melanin and goes through dermis to
reach to adipose tissue, acting on different area and depth of
hair;
4.Slight pain: Sapphire temperature cool down to 0~4°C, comfortable
to the whole treatment.
5. Facilities: Intelligent LCD screen, easy to operation . Permanent
hair removal: Suitable to all types of hair color and high
efficiency.
